This article explains how a steam power plant operates and explains its spatial design together with its essential components. The article provides technical explanations using everyday language suitable for students and readers with no background in power generation.

What is a Steam Power Plant?

picture of steam power plant

A steam power plant operates as a thermal power facility by converting heat energy into electric power. The power generation starts when fuel interacts with oxygen for combustion, followed by heat production.

The produced steam through heat power functions as a driver of the turbine mechanism. Electricity gets produced through the operation of generators triggered by turbine blade rotation.

The technology emerges from perfect combinations of fundamental principles and human engineering with fundamental strength dynamics.

Personal Perspective:

As a student, I had my first walkthrough experience of Chandrapura steam power station. Though I knew a lot about steam power stations, I was still amazed when I saw this huge steel and steam operating system and its humming sound.

To an engineer, the machinery sounds were spiritually calming. Stepping into the facilities creates a feeling of being within a science fiction movie because of the intense heat and noise of the complex machine-to-machine operations and the complicated electronic controls.

Working Principle of Steam Power Plant

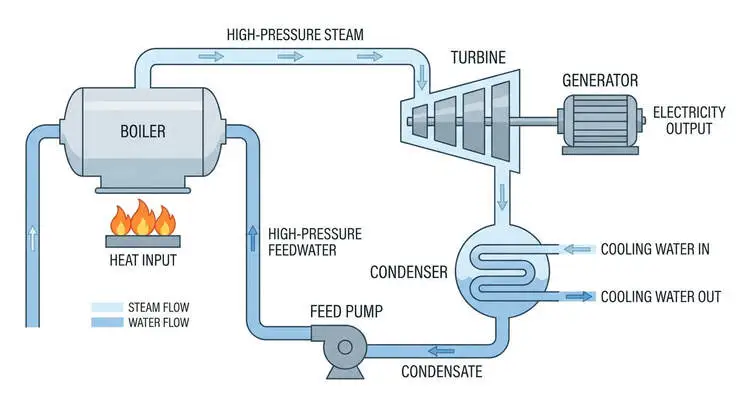

block diagram of steam power plant

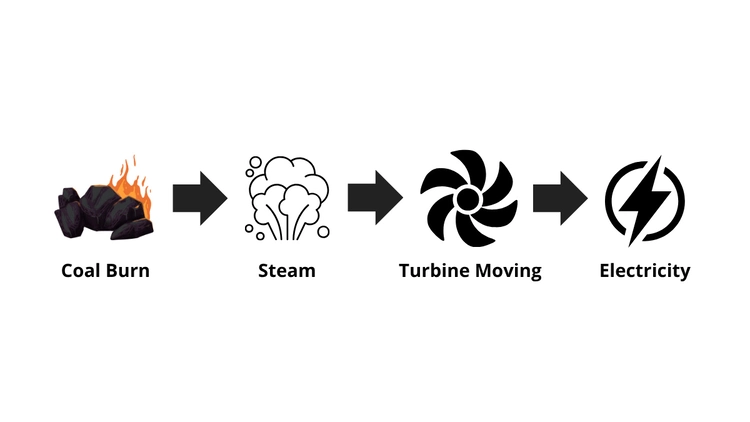

It is also known as a thermal power plant. A power generation principle is one in which heat energy is converted into mechanical energy and then mechanical energy into electrical energy.

In this process, mainly fuel like coal is used. Hence, it is also called a coal based thermal power plant. Electricity is produced on a large scale by this principle and is currently one of the primary energy sources worldwide.

Working of Steam Power Plant

A thermal power plant consists of the following steps to produce electricity:

1. Fuels and Combustion

Coal is used as fuel in thermal power plants. Coal is ground into fine powder and burned in boilers. Heat energy is produced during combustion, which converts water into steam.

2. Formation of Steam

The water in the boiler is heated by the heat produced by the fuel. The water is heated and converted into high-pressure and high-temperature steam.

3. Steam Passing through the Turbine

The high-pressure steam produced in the boiler passes through the turbine blades. The pressure and speed of the steam cause the turbine to rotate. Thus, the heat energy of the steam is converted into mechanical energy.

4. Conversion of Mechanical Energy into Electrical Energy

The rotating turbines are connected to generators, which convert mechanical energy into electrical energy. This electrical energy is controlled and delivered to the users.

5. Steam Condenser

After passing through the turbine, the steam loses energy and is brought to the condenser to cool. Here, the steam is converted back into water, which is reused in the boiler.

6. Waste Disposal

The smoke and other residues released after burning coal are released through flue gases. These gases are processed in the latest thermal power plants to reduce the environmental impact.

Steam Power Plant Layout.

Understanding the plant’s structure gives essential knowledge for steam power generation fundamentals. Each element in the power plant can be studied separately through the following breakdown:

Steam Generating Equipement

  • Steam Boiler: Steam boiler Equipment in a thermal power plant that converts water into steam. This steam generates electrical energy by rotating a turbine at high pressure and temperature. The boiler converts water into steam using the heat generated by burning coal.
  • Steam Boiler Furnace: Coal is burnt in the steam boiler furnace. The energy of burning water in the furnace is converted into steam at high temperatures and pressure.

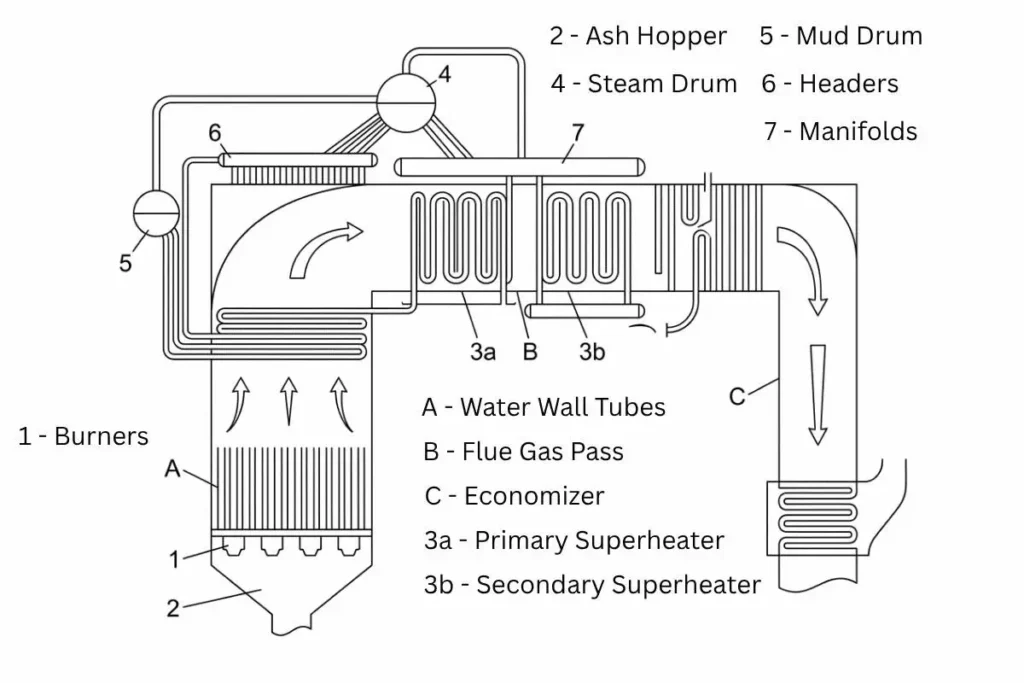

  • Superheater and Reheater: A superheater is a device that heats the steam to a higher temperature before sending it from the boiler to the turbine. This increases the energy efficiency. Also, the reheater reheats the steam in the turbine to reuse the energy capacity. Both devices improve the efficiency of the turbine and produce maximum electrical energy.
  • Deaerators: It helps remove dissolved gases.

Steam Condenser

When the steam leaves the turbine, it loses its energy, and the steam condenser cools it down to turn it into water. Cold water is used in the condenser to cool the steam, increasing the steam’s density and turning it into water.

Evaporator

In an evaporator, the steam from the turbine is evaporated by mixing impure water and then condensed to obtain pure water.

Boiler Feed Water Heater​

Boiler feedwater heaters are equipment in thermal power plants that preheat water before it is fed into the boiler. These heaters heat water using steam extracted from the turbine, which reduces fuel consumption and increases thermal efficiency. Their primary use is to save energy and reduce emissions and operating costs.

Prime Movers

Prime movers are devices that take energy from a source and convert it into mechanical power. They are used to drive synchronous generator or alternator systems. Prime movers include diesel engines, steam turbines, gas turbines, and electric motors.

Steam Turbine

The high-pressure steam stream directs itself to the turbine blades to initiate their rotation. This mechanical force will develop into future electricity systems.

The multiple turbine stages include high-pressure, intermediate, and low-pressure functions to achieve the maximum possible energy transformation from steam.

  • Alternator: The turbine generates electricity through its connected operation with the electricity-producing generator. The spinning movement creates electrical current inside the generator coils because of magnetic field induction.
  • Exciter System: it gives an initial magnetic field.
  • Cooling System: It helps to prevent overheating so it is essential element in the power plant.
  • Vacuum Maintainers: The system becomes more efficient through lower back pressure operation.
  • Feed water System: The treated condensed water goes back to the boiler system.

Cooling Towers and Spray Ponds

Cooling towers use water heated by equipment to cool it. In this process, hot water is cooled in power plants so that the machines remain efficient and do not overheat.

Spray ponds are cooling systems in which hot water is sprayed into the air through nozzles. When the water comes in contact with the air, it cools down and is then stored and reused in thermal power plants.

Coal and Ash Handling Plant

All thermal power plants remain operational because they need fuel for survival. The coal-based plant receives coal from mines through rail or conveyor belts, where it stays in dedicated bunkers. The crushed coal advances to crushers, where it gets pulverized before undergoing combustion.

  • Coal Mills: Coal turns into powdered form through conversion to support efficient burn process.
  • Ash Handling: After combustion takes place the plant collects the remaining ash that is discarded by dry or wet methods.
  • Boiler: Inside the furnace exists the area where coal fuels its combustion process. The power plant depends on this component to heat water until it creates steam.
  • Economizer: It captures some heat from the flue gases to preheat the water
  • Superheater: Steam temperature exceeds its saturation limit by heating it to reach higher operating efficiency.

Control Room

The entire plant is operated from the control room located in the steam power plant. Here, the operators monitor the condition of various equipment, such as temperature, pressure, and turbine.

Why Learn About Steam Power Plants?

The study of steam power facilities exceeds the technical knowledge of engineering. Understand how conventional power plants function to develop informed viewpoints when discussing energy sources and sustainability.

Local plant exploration remains the best possible experience for students; therefore, consider visiting one if possible. Professionals should consider gaining expertise in thermal system technologies since these plants will persist for several decades.

What is Rankine Cycle

Rankine cycle is also known as thermodynamic cycle. It is used to generate electricity in steam power plants. Under this cycle, water is heated in the boiler to form steam.

This steam is formed at high pressure and temperature, which rotates the turbine. The pressure of steam outside the turbine is reduced, and then this steam is converted back into liquid in the condenser.

After this, the pump sends the liquid back to the boiler, which is repeated continuously. The main goal of the Rankine cycle is to convert thermal energy into mechanical energy.

The production system of thermal power plants functions through the Rankine Cycle. Here’s a breakdown:

  • During heat addition, high-pressure steam forms from water through the boiler process.
  • Steam drives the turbine operation by expanding throughout the power-generating system.
  • The thermal condenser enables steam conversion into water by reducing its temperature.
  • The pump’s pressure system requires water to move between the boiler and the boiler again.
  • The thermal power generation system depends on this repetitive cycle that runs permanently.

My Experience with the Rankine Cycle.

The technical description matched what I observed at the moment. The engineer presented me to the control panel before allowing me to track the turbine start-up process.

The process required performing like a conductor, manually directing a symphonic orchestra of valves and pressure systems.

Advantages and disadvantages of Steam Power Plant

Advantages :

  • Steam power facilities function perfectly as base-load power generators since they offer a dependable, steady power supply. The plants keep running as long as they receive the required maintenance procedures.
  • These power plants can use coal, oil, natural gas, biomass, and waste materials to strengthen their fuel source flexibility.
  • Steam power generation operates as a tested technological solution because it maintains an established workforce and facilities to maintain and operate this proven technology.
  • The electricity generation ability of steam power plants reaches substantial levels that match the needs of industrial and urban areas with high power requirements.
  • Deploying supercritical and ultra-supercritical technology enables modern boiler power plants to increase thermal efficiency rates and produce reduced emissions output.

Disadvantages :

  • The current thermal efficiency stands between 33% and 42%, which leads to excessive waste heat losses from fuel energy.
  • Fossil fueled steam plants create notable environmental problems because they release significant amounts of CO₂, SO₂, NOx, and particulate matter that pollute the air, produce acid rain, and affect climate change.
  • The water demand of these plants becomes extreme because of their need for steam generation and cooling processes, thus causing severe strain on nearby water supplies, particularly in dry areas.
  • The start-up time of steam turbine power plants is lengthy because they need extended periods to achieve operational readiness, thus making them less effective during sudden energy fluctuations than gas turbines and renewable power sources.
  • Modern steam power plants’ entire development and operational process necessitates massive territory and infrastructure, including fossil fuel transportation infrastructure and waste management facilities.
  • The effectiveness and flexibility of coal based thermal power plants highlight the necessity to resolve their environmental impact and operational constraints through new clean energy systems.

Support the Evolution of Cleaner Power.

Integrating renewable technologies with modernized steam power plants through carbon capture technologies offers a solution for moving toward a more sustainable future.

Invoke support for technology retrofits in your community while participating in local energy programs. Through your acquired information, you become part of the solution.

Efficiency and Environmental Concerns.

The thermal efficiency range of thermal power plants used for electricity generation ranges from 33% to 42% based on technological characteristics.

The efficiency of supercritical and ultra-supercritical steam plants improves when temperatures and pressures increase because this reduces fuel usage and operational expenses.

Most of the released heat energy during operation submits to wasting, which leads to decreased total efficiency.

The power generation process using steam presents substantial environmental issues because of its dependency on coal, natural gas, or oil as fuel sources.

Steam power plants generate multiple greenhouse effects through carbon dioxide (CO₂) emissions, intensifying global warming incidents.

Air quality and human health face harmful impacts from sulfur dioxide (SO₂), nitrogen oxides (NOx), and particulate matter pollution.

The procedure creates two types of waste, fly ash and bottom ash, which become environmental hazards when improper waste management is practiced.

Coal based thermal power plants strain local water sources during operations since they need substantial water supplies for cooling and generating steam.

Modern power plants reduce their environmental effects by implementing sulfur dioxide filtering systems, electrostatic dust collectors, and carbon capture equipment.

Sustainable environmental practices require the adoption of renewable and low-carbon fuels in the long term.

The testing phase of a flue gas desulfurization system was one of my significant observations during my internship. The process of sulfur emission removal before gas release impressed me deeply.

The experience made me believe engineering represents a potential solution to reduce the differences between energy systems and environmental preservation.

Advancements in Steam Power Technology

Several key enhancements exist, among which are:

  • Supercritical and Ultra-supercritical Boilers are helpful for better efficiency by operating at higher temperatures and pressures.
  • Integrated Gasification Combined Cycle (IGCC) merges gas and steam turbines into one system, which provides better production results.
  • Through AI-based monitoring, the system can diagnose equipment failures in real-time.

Maintenance and Safety Protocols

  • The strict safety protocols of a thermal power plant become essential due to its operating conditions of elevated pressure alongside temperature.
  • Scheduled shutdowns provide the essential opportunity to conduct cleaning, inspection, and component replacement activities.
  • The emergency systems include fire suppression, emergency shut-offs, and backup power equipment.
  • Staff accuracy remains high due to ongoing regular training efforts that prepare personnel for emergencies.

A Word from the Field

A senior technician explained that a small water quality mistake led to scaling, which required a whole unit shutdown of several days.

Future of Steam Power Plants

Future coal based thermal power plants undergo changes due to technological improvements, environmental requirements, and worldwide energy guidelines. The future reveals itself through this explanation:

Decarbonization & Cleaner Energy

  • Several steam plants are transforming from coal power to biomass and natural gas operations to decrease carbon emissions.
  • Unified Carbon Capture & Storage (CCS) technology seeks to capture CO₂ exhaust that otherwise would enter the air before storing it.
  • The use of coal and renewable fuel mixing, known as co-firing, enables total emissions reduction.

Modernization & Digitalization

  • Shrewd monitoring systems powered by AI integrated with IoT sensors deliver immediate equipment health inspections that boost operational efficiency and minimize equipment stoppages.
  • System health monitoring is accomplished through predictive maintenance techniques using machine learning to forecast equipment failures, thus enhancing reliability and safety standards.
  • Operators now use remote operation features to manage plants at a distance, which brings greater efficiency and decreases operating personnel requirements.

Integration with Renewable Energy

  • Combining conventional power plants alongside solar thermal or wind power plant produces hybrid facilities that enhance reliability and sustainability goals.
  • The storage system based on molten salts enables steam plants to collect solar energy heat for later power generation.

Improved Efficiency

  • Supercritical and ultra-supercritical boilers function at elevated temperatures and pressures, which boosts thermal performance while cutting down fuel requirements.
  • Ceramics, composite materials, and other advanced turbine materials improve both temperature tolerance and decrease maintenance requirements.

Role in Energy Transition

  • Steam facilities operate as backup providers for the electricity grid whenever solar and wind renewable generation becomes more prevalent.
  • Aging coal plants can be transformed into district heating facilities, hyd, Rogen production facilities, and thermal storage centers.

Adopting advanced technology

  • Due to new emission standards, power plants must select from advanced pollution-reducing technologies or face closure.
  • The worldwide phaseout of coal-fired power generation plants will occur between 2030 and 2050 in various nations worldwide.

Final Thoughts

Steam power plants are operational masterpieces that deliver information about our industrial legacy and next-generation power systems. These facilities function actively as energetic systems that unite thermal power with pressurized movement.

Watching this operation provides a lasting memory as the machine works steadily, producing the sound of continuous energy creation. We should take advantage of every available opportunity to see such a facility.

Take the Next Step

The information presented in this article provides you with enough motivation to continue your exploration of the subject. Exploring power generation requires two steps: taking a short course about thermal engineering and scheduling a visit to your local thermal generation plant.

Knowledge about the origin of electric power leads us to responsible consumption patterns and innovation development. thermal power plants represent more than machinery and steam because they encompass the human element, advancement, and multiple opportunities.
